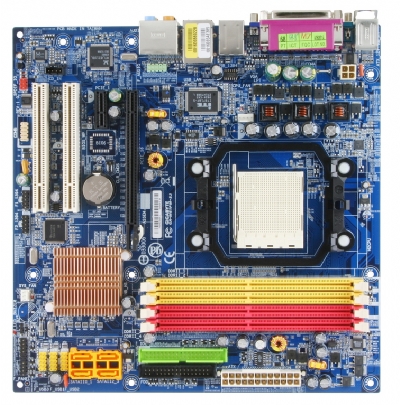

| Model | GA-M61PM-S2 |
| CPU Type | AMD Socket AM2
. Athlon64 / Athlon64 FX / Athlon64 X2 (듀얼코어) 프로세서
. Sempron 프로세서
. Windows Vista Premium Ready
. AMD Cool'n'Quiet 기술지원
. AMD Live! Ready |
| 시스템버스 | 2000 MHz Hyper-Transport |
| Chipset | nVIDIA GeForce 6100/nForce 430 (One-Chip solution) |
| Memory type | 듀얼 채널 DDR2 800/667/533/400 |
| Memory socket | 4 x DDR2 DIMM (Max. 16 GB w/ 64bit OS) |
| Onboard Graphics | Geforce6100 내장 그래픽코어
. CineFX 3.0 Engine
. DX9 & Shader Model 3.0 지원
. NVIDIA PureVideo 지원
. 최대 128MB 메모리공유 |
PCI-Express x16
(x8) | 1 |
PCI-Express x1
(x2,x4) | 1 |
| PCI | 2 |
| P-ATA | 1 x ATA133/100 |
| S-ATAII | 4 x SATAII (3Gb/s & RAID 0,1,0+1,5 support) |
| S-ATA | - |
| LAN | 기가비트 랜 (Realtek RTL8211) |
| Audio | 8-CH HD 오디오 (Realtek ALC883) |
| USB 2.0 | 기본 4 x USB 2.0 (최대 10 x USB 2.0 by cable) |
| IEEE 1394 | 기본 1 x 1394 (최대 3 x 1394 by cable) |
| I/O (Internal) | 1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x Floppy connector
1 x IDE connectors
4 x SATA 3Gb/s connectors
1 x CPU fan connector
1 x System fan connector
1 x Front panel connector
1 x Power LED connector
1 x Front audio connector
1 x CD In connector
1 x SPDIF In/Out header
1 x COMB header
3 x USB 2.0 connectors for additional 4 USB 2.0 by cables
2 x IEEE1394a connectors for additional 2 port by cable |
| I/O (Rear Panel) | 1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x Parallel port
1 x VGA port
1 x COMA port
4 x USB 2.0 port
1 x IEEE1394 port
1 x RJ-45 port
6 x Audio Jacks (Supporting 8-CH Audio) |
| BIOS | 4Mbit flash ROM |
| Hidden Bios 메뉴 | Ctrl + F1 키로 고급 메뉴 활성 (CMOS 초기화면)
. Advanced Chipset Features
-> CPU Frequency / DRAM Configuration / R.G.B 항목 추가 |
| Form Factor | Micro ATX (24.4*24.4 cm) |
| RoHS | RoHS 지침 Compliant 메인보드
- 유해물질 사용제한 지침 호환 |
| 부가기능 | GIGABYTE 'S2' Feature
* Smart
. Download Center
. Xpress Install
. Smart LAN
. @-Bios & Q-Flash
. Boot Menu
. Smart Fan
* Safe
. Virtual Dual Bios (Xpress Bios Rescue)
. BIOS Setting Recovery
. HDD S.M.A.R.T
. C.O.M (Corporate Online Manager)
. Xpress Recovery2
. PC Health Monitor |
