| Model |

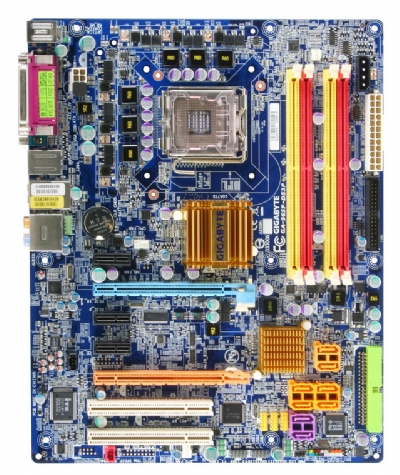

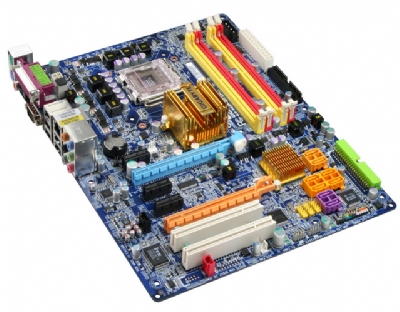

GA-965P-DS3-P (Rev 2.0) |
| CPU Type |
Intel LGA 775
. Intel Core2 Extreme / Core2 Quad 프로세서 (쿼드/켄츠필드)
. Intel Core2 Extreme / Core2 Duo 프로세서 (듀얼/콘로)
. Intel Pentium Extreme / Pentium-D 프로세서 (9xx / 8xx)
. Intel Pentium4 & Celeron-D 프로세서 (6xx / 5xx / 3xx)
. Windows Vista Premium Ready
. 100% Solid Capacitor 메인보드 디자인
. 강력한 6-페이즈 전원부
. DS3 기본사양 + ICH8R / IEEE1394 / ATI Cross Fire 기술지원 |
| 시스템버스 |
FSB 1066/800/533MHz |
| Chipset |
Intel P965 / ICH8R |
| Memory type |
듀얼 채널 DDR2 800/667/533/400 |
| Memory socket |
4 x DDR2 (Max. 8 GB w/ 64bit OS) |
PCI-Express x16
(x16, x8, x4) |
1 x PCI-Ex x16
1 x PCI-Ex x4
=> ATI Cross Fire 지원 |
PCI-Express x1
(x2, x1) |
3 x PCI-Ex x1 (Share w/ PCI-Ex x4) |
| PCI |
2 |
| P-ATA |
1 x ATA133/100/66/33 (By GIGABYTE SATA2 Chip) |
| S-ATAII |
8 x SATAII (3Gb/s)
. 6 x SATAII w/ RAID 0,1,0+1,5,10 (By ICH8R)
. 2 x SATAII w/ RAID 0,1, JBOD (By GIGABYTE SATA2 Chip) |
| S-ATA |
- |
| LAN |
기가비트 랜 (Marvell 88E8056 PHY) |
| Audio |
8-CH HD 오디오 (Realtek ALC888) |
| USB 2.0 |
기본 4 x USB 2.0 (최대 10 x USB 2.0 by cable) |
| IEEE 1394 |
기본 1 x IEEE1394a (최대 3 x IEEE1394a by cable) |
| I/O (Internal) |
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
1 x Floppy connector
1 x IDE connectors
8 x SATA 3Gb/s connectors
1 x CPU fan connector
1 x System fan connector
1 x NB Fan connector
1 x Front panel connector
1 x Power LED connector
1 x Front audio connector
1 x CD In connector
1 x SPDIF In header
3 x USB 2.0 connectors for additional 6 USB 2.0 by cables
2 x IEEE1394a connectors for additional 2 port by cable |
| I/O (Rear Panel) |
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x Parallel port
1 x COMA port
1 x SPDIF Out port (Optical & Coaxial)
4 x USB 2.0 port
1 x RJ-45 port
6 x Audio Jacks (Supporting 8-CH Audio) |
| BIOS |
8M bit flash ROM |
| Hidden Bios 메뉴 |
Ctrl + F1 키로 고급 메뉴 활성 (CMOS 초기화면) |
| Form Factor |
ATX (30.5*24.4 cm) |
| RoHS |
RoHS 지침 Compliant 메인보드
- 유해물질 사용제한 지침 호환 |
| 부가기능 |
GIGABYTE 'D + S3 + Pro' Feature
* Durability

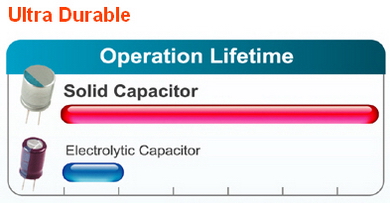

. 100% All-Solid Capacitor 메인보드 디자인
* Pro
. ICH8R + IEEE1394 + ATI Cross Fire 기술 지원
* Speed
. EasyTune5
. M.I.T (Motherboard Intelligent Tweaker)
. R.G.B (Robust Graphics Booster)
* Smart
. Download Center
. Xpress Install
. Smart LAN
. @-Bios & Q-Flash
. Boot Menu
. Smart Fan
* Safe
. Virtual Dual Bios (Xpress Bios Rescue)
. BIOS Setting Recovery
. HDD S.M.A.R.T
. C.O.M (Corporate Online Manager)
. Xpress Recovery2
. PC Health Monitor |
| 번들 소프트웨어 |
. Norton Internet Security (OEM version)
. Kaspersky Anti-Virus Personal 5.0 (OEM version)
. Adobe Acrobat Reader |
