| Model |
상세 내용 |
기가바이트
Power 디자인 |

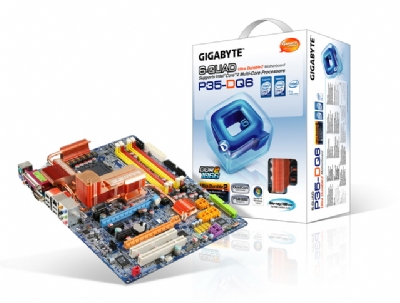

※ GA-P35-DQ6 : 12 페이즈 전원부 (w/ SMD Solid Capacitor)

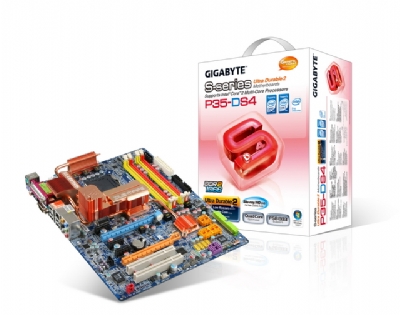

※ GA-P35-DS4 : 6 페이즈 전원부
* GIGABYTE 'Ultra Durable2' 디자인
. Low RDS(on) 모스펫 (16% 발열감소)
. Ferrite core 쵸크 (에너지손실 25% 감소)
. 100% All-Solid 캐패시터 (오버클럭 내구성 증대) |
| CPU Type |
Intel LGA 775
. Ready for next Generation 45nm 프로세서
. Intel Core2 Extreme 쿼드-코어 / Core2 Quad (켄츠필드)
. Intel Core2 Extreme 듀얼-코어 / Core2 Duo (콘로)
. Intel Pentium Extreme / Pentium-D 프로세서 (9xx / 8xx)
. Intel Pentium4 프로세서 (6xx)
. Intel 하이퍼 스레딩 테크놀로지 지원
. Windows Vista Premium Ready |
| 시스템버스 |
FSB 1333/1066/800MHz |
| Chipset |
Intel P35 / ICH9R |
| Memory Type |
듀얼 채널 DDR2 1066(OC)/800/667/533/400 |
| Memory Socket |
4 x DDR2 (Max. 8 GB w/ 64bit OS) |
| PCI-Express x16 |
1 x PCI-Ex x16
1 x PCI-Ex x4
=> ATI CrossFire 지원 |
| PCI-Express x1 |
3 x PCI-Ex x1 (Share w/ PCI-Ex x4) |
| PCI |
2 |
| P-ATA |
1 x ATA133/100/66/33 (By GIGABYTE SATA2 Chip) |
| S-ATAII |
8 x SATAII (3Gb/s)
. 6 x SATAII w/ RAID 0,1,5,10 (By ICH9R)
. Intel Matrix Storage Technology
. Intel Rapid Recover Technology
. SATA2 Port Multiplier 지원
. 2 x SATAII w/ RAID 0,1, & JBOD (By GIGABYTE SATA2 Chip)
. e-SATA2 Bracket & Data/Power Cable 제공 |
| LAN |
기가비트 랜 (Realtek 811B chip) |
| Audio |
8-CH Blu-ray/HD DVD Full rate 오디오
. Realtek ALC889A with DTS
. High-performance DAC
. 106dB Signal to Noise Ratio
. DTS/Dolby Digital Live support
. Blu-ray/HD DVD Full rate Audio support |
| USB 2.0 |
기본 4 x USB 2.0 (최대 12 x USB 2.0 by cable) |
| IEEE 1394 |
기본 1 x IEEE1394a (최대 3 x IEEE1394a by cable) |
| I/O (Internal) |
1 x 24-pin ATX power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x Floppy connector
1 x IDE connectors
8 x SATA 3Gb/s connectors
1 x CPU fan connector
2 x System fan connector
1 x Power fan connector
1 x NB Fan connector
1 x Front panel connector
1 x Front audio connector
1 x CD In connector
1 x SPDIF In header
1 x Trusted Platform Module (TPM) connector
1 x Power LED connector
1 x Chassis Intrusion connector
4 x USB 2.0 connectors for additional 6 USB 2.0 by cables
2 x IEEE1394a connectors for additional 2 port by cable |
| I/O (Rear Panel) |
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x Parallel port
1 x COMA port
1 x SPDIF Out port (Optical & Coaxial)
4 x USB 2.0 port
1 x IEEE1394a port
1 x RJ-45 port
6 x Audio Jacks (Supporting 8-CH Audio) |
| BIOS |
Virtual Quad Bios (2 x 8M bit flash ROM) |
| Form Factor |
ATX (30.5*24.4 cm) |
| RoHS |
RoHS 지침 Compliant 메인보드
- 유해물질 사용제한 지침 호환 |
기가바이트
Overclocking |
* M.I.T (Motherboard Intelligent Tweaker)
. CMOS 초기화면 Ctrl + F1 키로 고급 메뉴 활성
. CPU/Memory/PCI-E Over-clock & Memory Timing setting
. CPU/DIMM/PCI-E/MCH/FSB Over-voltage |
기가바이트
Q & S Feature |
* GIGABYTE '6 Quad + S3' 디자인
1. 6 Quad (GA-P35-DQ6 모델에 해당)
. Quad Core Ready
. Quad Triple Phase (12 Power Phase)
. Quad Cooling (Silent Pipe II + Crazy Cool II)
. Quad eSATA2
. Quad DDR2 Slots
. Quad Bios
2. Speed
. EasyTune5 & i-COOL
. M.I.T (Motherboard Intelligent Tweaker)
. R.G.B (Robust Graphics Booster)
. C.I.A.2 (CPU Intelligent Accelerator 2)
3. Smart
. Download Center
. Xpress Install
. Smart LAN
. @-Bios & Q-Flash
. Boot Menu
. Smart Fan
4. Safe
. Virtual Dual Bios (Xpress Bios Rescue)
. BIOS Setting Recovery
. HDD S.M.A.R.T
. C.O.M (Corporate Online Manager)
. Xpress Recovery2
. PC Health Monitor |
| 번들 소프트웨어 |
. Norton Internet Security (OEM version)
. Kaspersky Anti-Virus (OEM version)
. Adobe Acrobat Reader |
| Remark |
※ 듀얼 채널 메모리 구성
. 동일 색상 메모리 DIMM 에 메모리 장착 要
※ Windows 64-bit OS limitation으로 8GB의 메모리 용량 구성 시 시스템 부팅 시에는 7.xx 로 표기됨. |
